Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery

브랜드 이름:	RESKY
모델 번호:	LP502030
MOQ:	10pcs
가격:	협상 가능
포장에 대한 세부 사항:	종이상자
지불 조건:	T/T, 서부 동맹

자세한 정보

제품 설명

자세한 정보

원래 장소:

CE, RoHS, MSDS, Un38.3,IEC62133, ECT

공칭 용량:

250mAh

충전 전류:

연속적인 방전 전류:

최대 방전 전류:

사이클 수명:

500 사이클

12 개월

아, 몰렉스....

OEM 서비스:

9*20*40mm

공급 능력:

50000pcs/day

강조하다:

Rechargeable Lifepo4 battery 3.7v 250mAh

Lithium polymer battery pack 502030 size

Power lithium ion battery with warranty

제품 설명

Rechargeable LiFePO4 Battery Cell 502030 3.7V 250mAh 0.925Wh Power Lithium Ion Polymer Battery

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7V 250mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	250mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7	Charging time	Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.)
8	Max. charge current	1.0C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.75V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 50±2mm Width: 20±0.5mm Thickness: 5±0.2mm
14	Drop Test	1m drop onto concrete twice. No fire, no leakage
15	Cycle time	≥500 cycles

Key Features

Strong voltage compatibility: 3.7V nominal voltage is compatible with most low-power devices without additional power supply circuitry.
Safety and durability: Includes protection against overcharge, over-discharge, and short circuits with approximately 500 cycle times and ≤3% monthly self-discharge rate.
Flexible installation: Soft-pack packaging allows slight bending to fit irregular spaces in micro devices.

Main Applications

Smart Wearable Devices: Smart bracelets, GPS watches, motion trackers with 1-2 days of low-power use.

Miniature Digital Devices: Bluetooth headsets, voice recorders, MP3 players, cameras with 3-6 hours of use.

IoT Terminals: Wireless sensors, RFID tags, data collectors with long standby times.

Medical Devices: Blood glucose meters, pulse oximeters, massagers with stable discharge.

Toys and Models: Remote control cars, drones, robots with compact size and low-rate discharge.

Backup Power: Auxiliary power for smart door locks, emergency power for small devices.

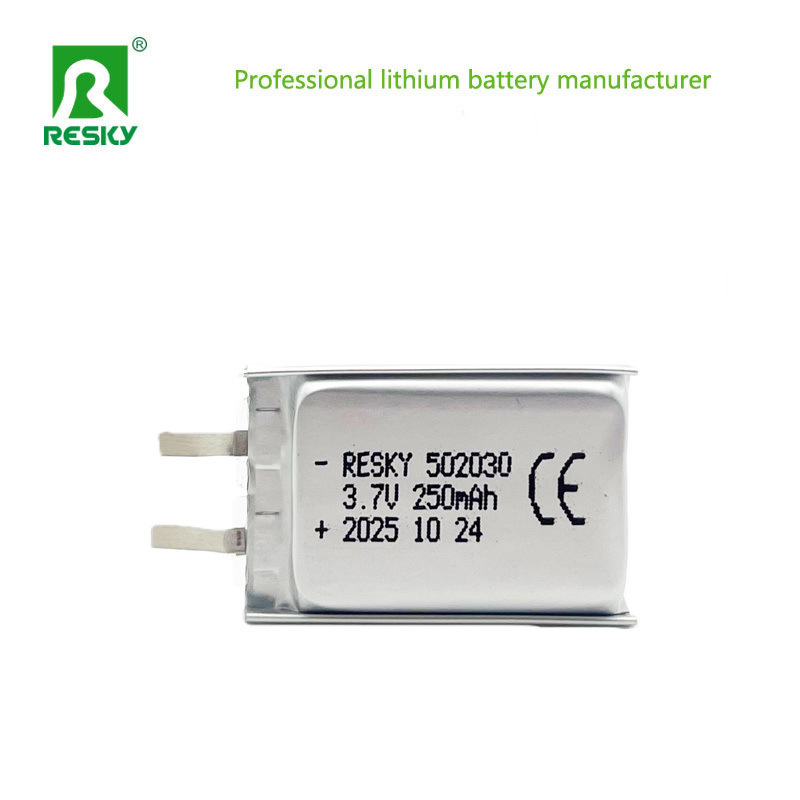

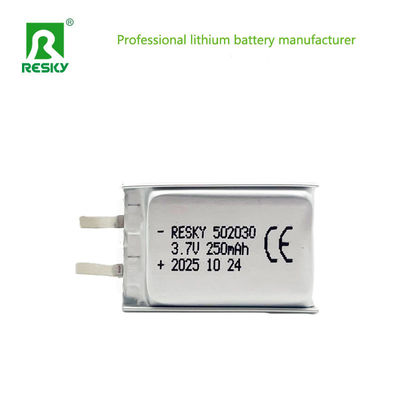

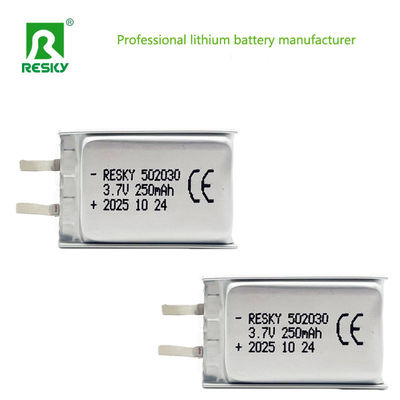

Product Images

태그:

리튬 폴리머 배터리 팩

맞춤형 리포 배터리 팩

리포 건전지 팩
