| 브랜드 이름: | RESKY |
| 모델 번호: | LP502065 |
| MOQ: | 10개 |
| 가격: | 협상 가능 |
| 포장에 대한 세부 사항: | 종이상자 |
| 지불 조건: | 서부 동맹, T/T |
| Attribute | Value |
|---|---|
| Nominal Capacity | 700mAh |
| Charging Current | 0.2c |
| Continuous Discharging Current | 0.5c |
| Max Discharging Current | 1c |
| Weight | 10g |
| Cycle Life | 500cycles |
| Warranty | 12months |
| Shipping | UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line |
| Connector | Jst, Molex.... |
| Specification | 5*20*65mm |
| NO. | Items | Specifications |
|---|---|---|

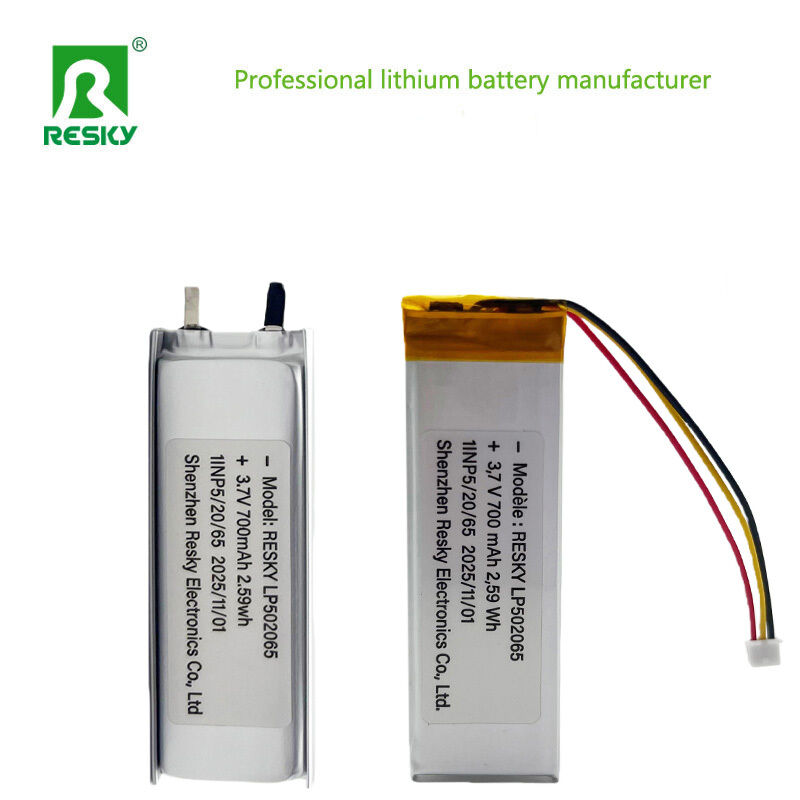

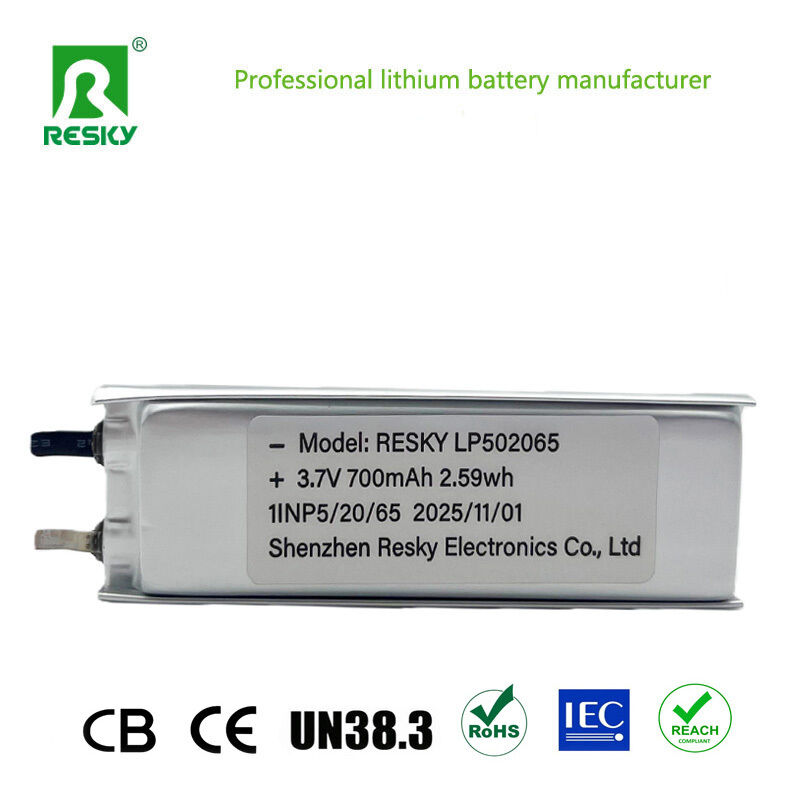

| 1 | Batteries | 3.7v 700mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 700mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.75V(0.2C) |
| 11 | Operating temperature | Charging: 0°C ~45°C Discharging:0°C ~45°C |
| 12 | Storage temperature | -10°C~ +45°C |
| 13 | Dimension | Length: 65±2mm (not including tabs) Width: 20±0.5mm Thickness:5±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Main Advantages:
1. High energy density, superior size/weight
2. Strong voltage matching, wide compatibility
3. 7V nominal voltage is the "standard voltage" for consumer electronics and IoT devices, eliminating the need for additional series/parallel boost/buck modules. It can directly power chips, sensors, and small motors, simplifying device circuit design and reducing costs.
3. Excellent charge/discharge performance, superior user experience
No memory effect:
High charge/discharge efficiency:
Considerable cycle life:
4. Flexible shape, strong adaptability
5. Outstanding low-temperature performance, wider application scenarios
6. Environmentally friendly and safe, compliant with industry standards
